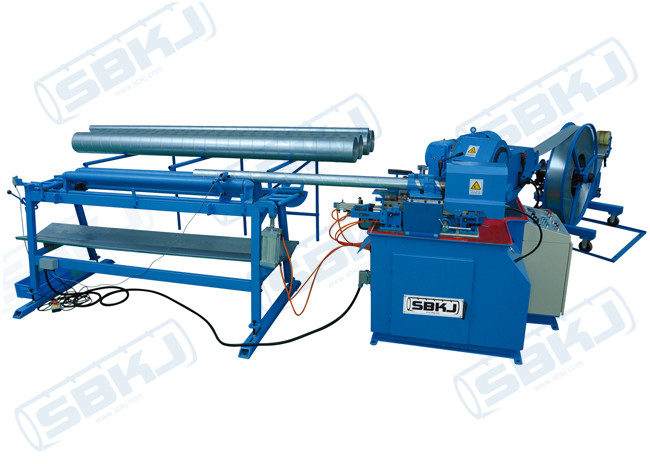

Spiral Tubeformer SBTF-1602



Description
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs. The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation. The outstanding patented flying slitter cuts the tubes to lengthwithout noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.





Technical data

Diameter

¢80 mm – ¢1600mm

Thickness range

Galvanized steel

0.4 -1.3mm

Stainless steel

0.4-0.8mm

Aluminum

0.4-1.3mm

Strip width

Standard 137mm

0.4-1.0 mm



Standard 140mm

1.1-1.3 mm

Lock seam

Outside lock seam, on the inside on request

Working speed

Max.60 m/min. depending on material

Cutting system

Slitting cutter

Weight

2900kg

Dimension

Main machine

1900*2050*1500mm

Decoiler

1780*1130*1250mm

Run-out table

2700*950*1200mm
