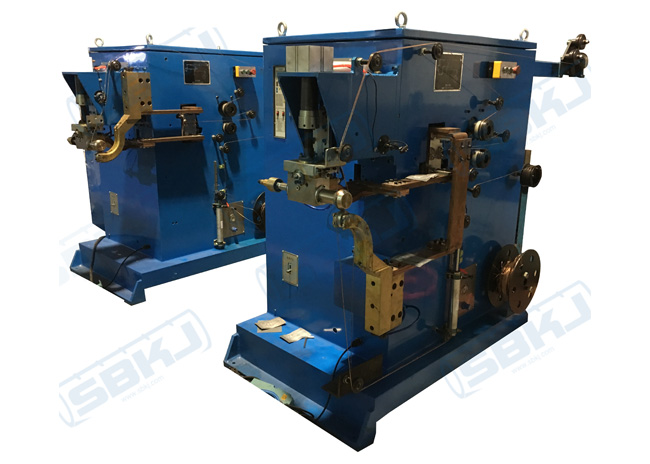

ELBOW SEAM WELDER

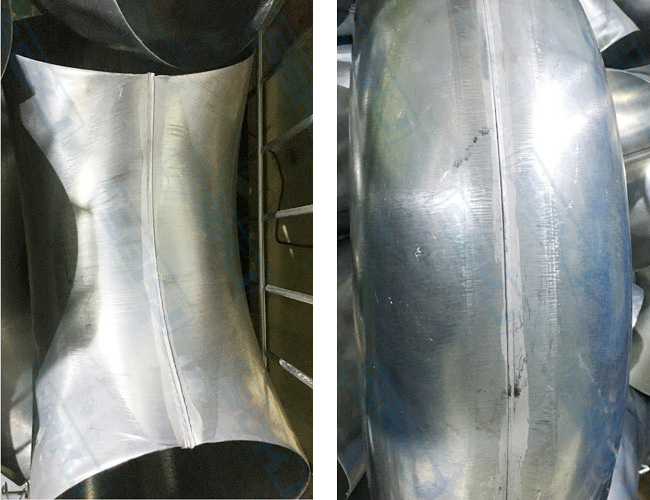

Partial view

Technical Data
Diameter φ80-250mm
Angle 45°/ 90°
Thickness



Cold rolled steel:0.5~0.8mm
Galvanized steel:0.5~0.8mm
Stainless steel:0.4~0.6mm
Welding Speed 3-9m/min
Seam Overlap 6mm
Wire φ2.0-2.6 mm
Cooling Water 0.4Mpa  8.5L/min
Compress Air 0.8Mpa  600L/min ≤20°C
Power 45KVA(Simplex)
Weight 950kg*2
Dimension 1600*1000*1600mm(Simplex)
