Current location:Home > ROUND DUCTING MACHINE CORRELATIVE SERIESProducts

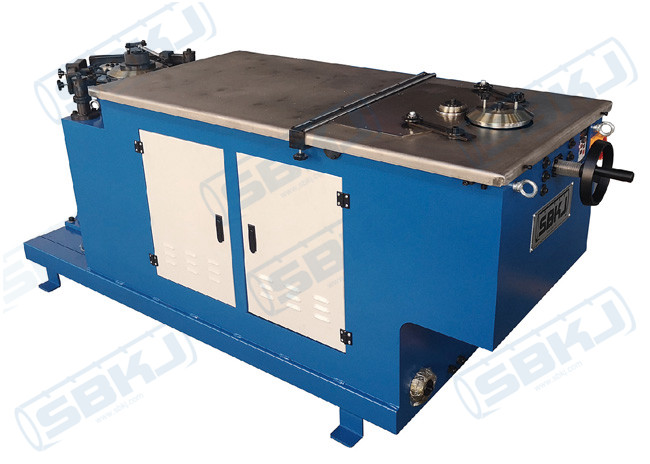

Gorelocker


Partial view


Technical Data
Type SBWT-1000 SBWT-1500 SBWT-1000A
Frequency Control(Male/Female)
SBWT-1500A
Frequency Control(Male/Female)
SBWT-1000D
Frequency Control(Male/Female/
Seam Lock)
SBWT-1500D
Frequency Control(Male/Female/
Seam Lock)
Thickness 1.2mm 1.5mm GI  0.4-1.2mm
SS  0.4-1.0mm
GI  0.4-1.8mm
SS  0.4-1.2mm
GI  0.4-1.2mm
SS  0.4-1.0mm
GI  0.4-1.8mm
SS  0.4-1.2mm
Diameter ¢120-1150mm ¢120-1500mm ¢120-1000mm ¢120-1500mm ¢120-1000mm ¢120-1500mm
Working speed 35r/min 35r/min 75r/min 75r/min 75r/min 75r/min
Power 1.5Kw×2 2.2Kw×2 1.5Kw×2+2.2kw/1 2.2Kw×2+4kw/1 1.5Kw×2+2.2kw/2 2.2Kw×2+4kw/2
Weight 600Kg 700Kg 600Kg 660Kg 600Kg 660Kg
Dimension 2080×720×895mm 2450×720×895mm 2080×700×895mm 2450×700×895mm 2080×700×895mm 2450×700×895mm
